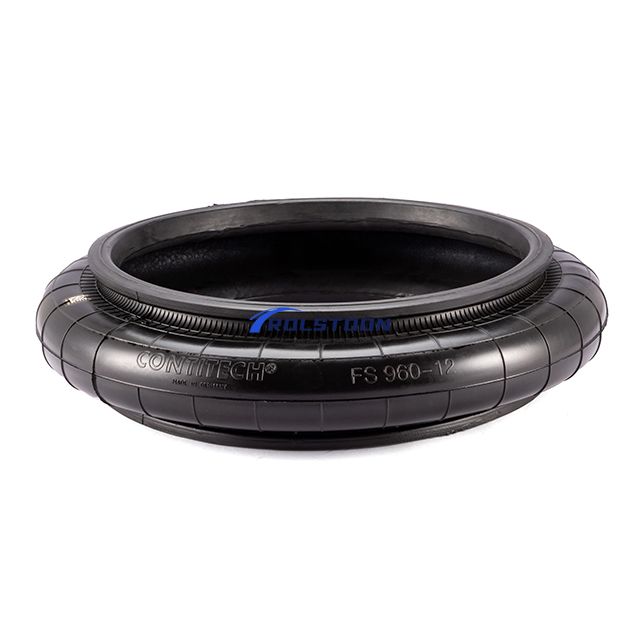

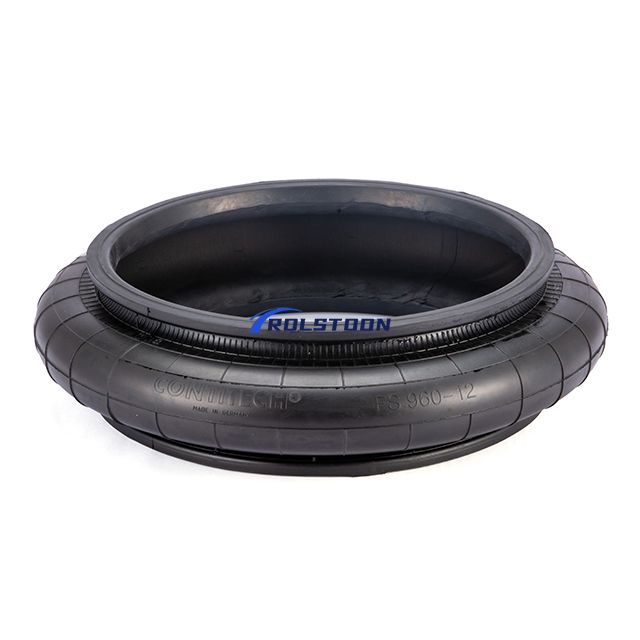

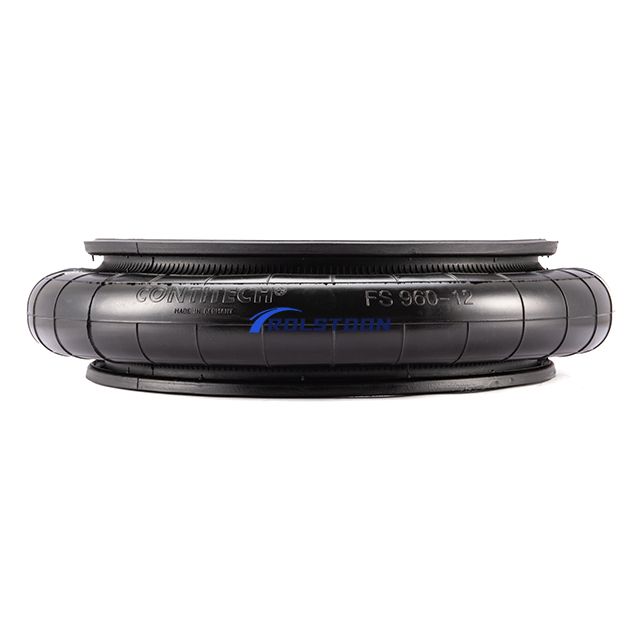

FS 960-12 CI | 马牌康迪泰克单囊式空气驱动器

力（负载）F [kN]

28.6

38.3

47.8

57.5

67.2

76.6

14

弹簧刚度 c [N/mm]

581

740.5

891.5

1035

1186

1329.5

固有频率 f ₀ [Hz]

2.3

2.2

2.2

2.1

2.1

2.1

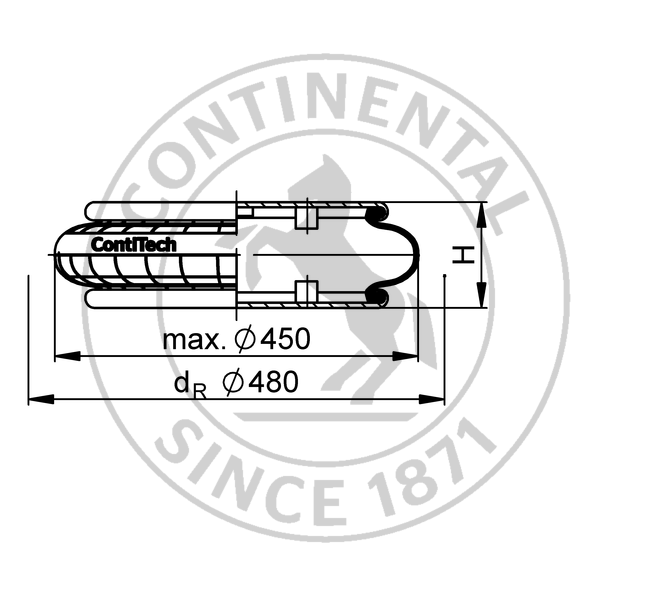

设计高度 H：建议 130mm， 最小 115mm

H = 160 [mm]

19.6

26.9

34.5

42.3

50.4

58.6

16

H = 140 [mm]

25.7

34.8

44

53.4

63

72.7

15

H = 120 [mm]

30

40.3

50.8

61.3

72.1

82.9

13

H = 100 [mm]

33

44.3

55.6

67.1

78.7

90.3

11

H = 80 [mm]

35

46.9

58.8

70.9

83.1

95.3

8.4
